Procedure to test Rectifier & Converter: Variable Speed Drive Servicing. Reduce Common Mode Current & Bearing Fluting.

A simple test with a multi meter on Diode function can determine a defect with some detectable period before functional failure.

To be able to measure and determine a defect an understanding of the Drives rectifier, DC bus and Output is needed.

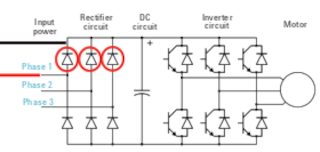

The 3 phase AC supply is converted to DC at the rectifier. Effectively the peaks of the AC sine wave are used to form DC.

The DC capacitors act to smooth this ripple.

A Procedure for testing Capacitors here

If a Diode fails open one of those ripples is not powered and the capacitors have to make up the load.

Using a Multi meter on Diode mode you can ensure the AC cycle is providing its ripple and full function of the rectifier.

Procedure for Testing VFD

For each side of the DC bus positive and negative a test for forward bias is made, the voltage drop to open the switch is should be 0.3 to 0.6 volts.

The test leads are reversed and a test to ensure that the switch holds voltage on the DC side is maintained.

Diode Test
Forward Bias Test

This is Forward Bias test for the rectifier on the Positive Bus.

This is the reverse bias for those same diodes. An open circuit is expected.

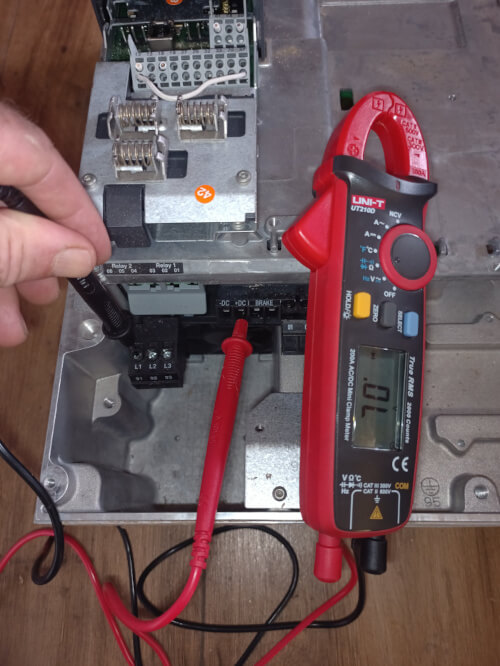

Reverse Bias Diode Test

For the Negative Side of the DC bus the test leads are reverse because the forward bias is acting on the negative voltage of the AC Sine wave.

Negative Side of DC Bus

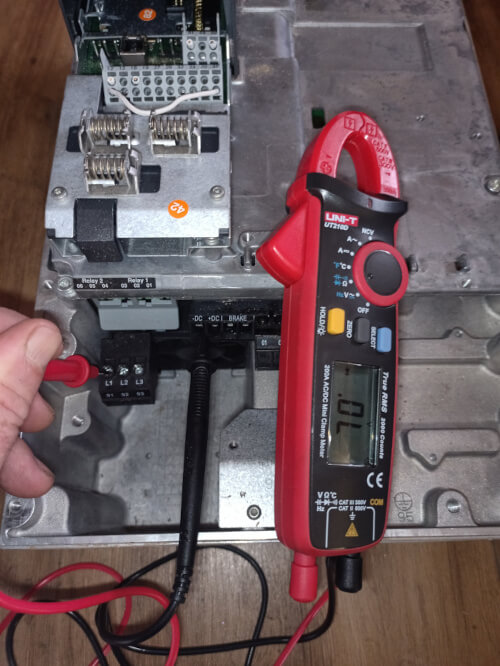

Negative DC Bus Diode Test

If this Switching component (Diode, IGBT, SCR) fails open the drive may still function but at a reduced capacity.

Again the reverse bias is checked by reversing the test leads. An open circuit is expected.

On the Output card normally IGBT (Insulated Gate Bipolar Transistors) are tested in a similar way. The direction for the forward bias is from the DC Bus.

Forward Bias IGBT

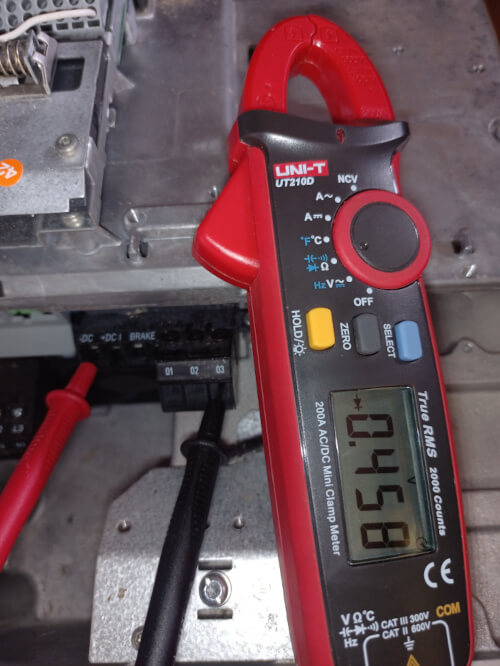

Forward Bias IGBT Test

And the Reverse Bias again follows the same logic.

Negative Bias IGBT Test

Results:

                                      U      V        W     Rectifier

Forward Bias +ve bus 0.515 0.517 0.514

Reverse Bias               OL     OL     OL

Forward Bias -ve bus 0.532 0.521 0.525

Reverse Bias                OL     OL     OL

                                      U       V       W      Output

Forward Bias +ve bus 0.457 0.457 0.457

Reverse Bias               OL     OL     OL

Forward Bias -ve bus 0.458 0.457 0.458

Reverse Bias               OL     OL     OL

There is a small variation on this drive on the Negative Bus Rectifier. This needs to be monitored to see if this is a trend, or compare with a new drive of the same model.

Note: This drive is more than fifteen years old.
