Understanding Hysteresis and the Hidden Heat in Motor Cores
When we talk about motor efficiency, our minds often jump straight to copper losses—the I²R heating in the stator windings. While that is certainly the largest piece of the pie, there is another, more subtle culprit silently stealing energy and generating heat deep inside the motor's steel core: Hysteresis Loss.
For standard three-phase AC induction motors, hysteresis losses typically account for 15% to 25% of total losses under full load. Combined with eddy currents, they represent the "core losses" (or iron losses) that can make or break a motor's efficiency rating.
To truly understand modern motor design—especially when looking at high-efficiency IE3 and IE4 models—we have to dive into the physics of magnetism. Let’s break down what hysteresis is, why it matters, and how premium designs tackle it.
The Breakdown: Where Does the Energy Go?
In a typical standard-efficiency induction motor, the loss profile is distributed as follows:
- Stator I²R Losses (Copper): 30% – 40%
- Rotor I²R Losses: 15% – 25%
- Core Losses (Iron): 15% – 25% Hysteresis: ~60% – 70% of core losses
- Eddy Current: ~30% – 40% of core losses
- Hysteresis: ~60% – 70% of core losses
- Eddy Current: ~30% – 40% of core losses
- Friction & Windage: 5% – 15%
- Stray Load Losses: 3% – 10%
While the rotor and stator copper losses dominate, core losses remain a significant source of inefficiency. Within those core losses, hysteresis is the heavyweight champion.

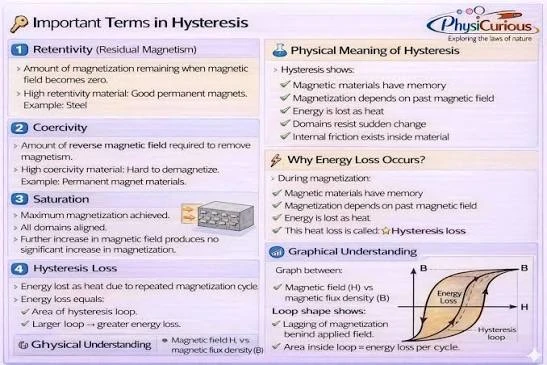

What is Hysteresis (and Why Does it Generate Heat)?
In simple terms, hysteresis loss is the energy required to constantly realign the magnetic domains inside the motor's steel core as the AC current alternates. Every time the current changes direction (50 times a second at 50 Hz), the magnetic field flips, and the microscopic magnetic "domains" in the steel must rotate.
This rotation is not frictionless. The resistance to this magnetic realignment creates a lag—this is the "hysteresis" effect. The energy expended in this struggle is released as heat.
The mathematical relationship governing this is defined by the Steinmetz Equation:
Ph=η⋅f⋅(Bmax)n
Where:
- Ph = Hysteresis power loss per unit volume.
- η = Steinmetz material coefficient (quality of the steel).
- f = Electrical frequency.
- Bmax = Peak magnetic flux density (Tesla). Direct Relationship to Z max
- n = Steinmetz exponent (usually 1.6 for silicon steel).
The Danger of "Flux Creep"
One of the most critical takeaways from this equation is the non-linear scaling. Because the exponent n is greater than 1, the relationship between flux density and heat is exponential.
Consider a standard motor core made of silicon steel with an exponent of n = 1.6.
If a motor's operating voltage surges or load conditions force a 10% increase in peak magnetic flux density (Bmax), the resulting heat generation is disproportionate:
- Baseline: (1.0)1.6=1.0
- New Loss: (1.1)1.6≈1.165
This shows that a modest 10% push past the original design target generates 16.5% more heat from hysteresis alone. If you push the core into magnetic saturation, the exponent can spike past 2.0, causing losses to worsen exponentially.
Why High-Efficiency Motors Have Lower Impedance (But Higher Inrush)
Here is where the document reveals a fascinating engineering trade-off. On high-efficiency motors (IE3, IE4, or Premium Efficiency), the maximum impedance magnitude (Zmax) is generally lower than on a standard-efficiency motor.
Why?
- Thicker Wire (Lower Resistance): To reduce stator copper losses, premium motors use larger cross-section copper wire.
- Reduced Leakage Reactance: High-efficiency motors use larger stator/rotor stacks and premium thin silicon steel laminations, which reduces leakage reactance.
The Catch: Because the total impedance (Z) at locked-rotor conditions is lower, high-efficiency motors characteristically draw higher starting currents (higher ILR) than standard motors of the same power rating.
The Diagnostic Takeaway: When performing Motor Circuit Analysis (MCA) or impedance testing, don't be alarmed if you see lower absolute impedance values Z max on a high-efficiency motor. The critical diagnostic metric is impedance imbalance—if the drop happens on only one phase, it indicates shorted turns; if the drop is across all three phases, it is simply a sign of a high-efficiency design.
The Next consideration is the variation in this Z max between Motors of the same Brand & Model.
Motors on the higher end of Zmax are highly correlated to Winding defects in Phase Angle r=0.82
Above 8% Impedance Imbalance Static shows a significant increase in Stator defects, likely from the elevated losses (Heat) which decays insulation.
The Complete Picture: Total Core Loss
Hysteresis is only one part of the equation. To find the total core loss (Pcore), engineers must look at both hysteresis and eddy current components together:
Pcore=(η⋅f⋅Bmaxn)+(ke⋅f2⋅Bmax2⋅t2)
Where t is the thickness of the core laminations.
How Designers Fight the Heat
To mitigate these combined losses, motor designers employ three specific strategies:
- Lamination: Steel blocks are abandoned in favor of thin, stacked sheets. These layers break up the paths of eddy currents, reducing the t2 variable without altering the flux density.
- Silicon Alloying: Adding roughly 3% silicon to the electrical steel increases its electrical resistance. This lowers eddy current generation while maintaining high magnetic permeability.
- Grain-Oriented Steel: Aligning the crystal structure of the steel in the direction of the magnetic field lowers the Steinmetz coefficient (η), shrinking the size of the B-H loop and reducing the energy lost per cycle.
Conclusion
Hysteresis loss is a reminder that in electric motors, not all inefficiency comes from visible heat on the windings. The invisible battle inside the steel core—magnetic domains constantly fighting to realign—adds a significant thermal penalty.
As we push motors toward higher efficiency ratings (IE3, IE4, and beyond), understanding the Steinmetz equation isn't just academic; it's a diagnostic necessity. A 10% increase in flux density doesn't just mean 10% more work for the motor—it means 16.5% more heat, and potentially, a significantly shortened life span. Keep your voltage stable, your frequency controlled, and your eyes on the impedance balance.
